(SPDP) CAS #: 68181-17-9 产品使用说明书(含氨基马来酰亚胺蛋白)

时间:2018-03-30 14:54:23       浏览:3316

(SPDP) CAS #: 68181-17-9 产品使用说明书(含氨基马来酰亚胺蛋白)

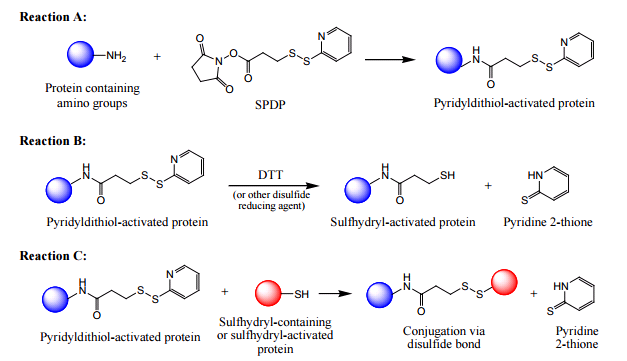

SPDPCAS #: 68181-17-9 产品可以偶连带氨基的蛋白和巯基或马来酰亚胺的蛋白,偶连带活性基团的蛋白示意图:



我们可以提供三种不同结构的SPDP异端功能蛋白交联剂:SPDP,LC-SPDP,Sulfo-LC-SPDP

其中SPDP,LC-SPDP是脂溶性蛋白交联剂,Sulfo-LC-SPDP是水溶性蛋白交联剂。



Procedure for Conjugating Two Proteins, Oneof Which Contains Sulfhydryls



To conjugate between primary amines on oneprotein and sulfhydryls (-SH) already present on a second protein, only thefirst protein must be modified with the SPDP reagent.2 Then, after desaltingthe SPDP-modified protein to remove reaction byproducts and excess nonreactedreagent, the sulfhydryl-containing protein is added to make the final conjugate(Figure 2, Reaction 1)



Additional Materials Required



Water-miscible organic solvent such asdimethylsulfoxide (DMSO) or

dimethylformamide (DMF); not necessary forSulfo-LC-SPDP



Phosphate buffered saline with EDTA(PBS-EDTA): 100mM sodium phosphate, 150mM NaCl, 1mM EDTA, 0.02% sodium azide,pH 7.5



Proteins to be conjugated: In theprocedure, IgG and β-galactosidase represent the amine-containing andsulfhydrylcontaining protein, respectively.



Procedure

Equilibrate the vial of SPDP Reagent toroom temperature before opening. 2.



Immediately before use, prepare a 20mMsolution of SPDP Reagent:



Add 25µL of the 20mM SPDP solution to 2-5mgIgG dissolved in 1.0mL of PBS-EDTA.



Incubate for 30 minutes at roomtemperature.



Equilibrate a desalting column withPBS-EDTA, and buffer exchange the SPDP-modified IgG to remove reactionbyproducts and excess nonreacted SPDP reagent



Add 1-3mg of β-galactosidase (~1-3 molesβ-gal per mole of IgG) to the IgG solution and incubate the reaction mixtureovernight at room temperature



The proteins (IgG and β-galactosidase inthis example) are now conjugated.



Additional Information



Please visit the web site for additionalinformation on this product including the following items:

• Tech Tip #1: Attach a protein onto glass,silica or quartz surface using a cleavable crosslinker

• Tech Tip #26: Prepare a reversible andmeasureable sulfhydryl-reactive affinity column



Protocol For Pyridine-2-Thione Assay toDetermine Level of SPDP-modification



1. Dilute 100µL of SPDP-modified anddesalted protein to 1mL with PBS.

2. Measure and record the absorbance at343nm of the protein sample compared to PBS-EDTA blank (test in triplicate)

3. Add 10µL of 15mg/mL DTT to the 1mLSPDP-modified protein sample, mix.

4. After exactly 15 minutes, measure andrecord the absorbance at 343nm of the reduced sample.

5. Calculate the change in absorbance: ∆A343= (Ave. A343 after DTT) (Ave. A343 before DTT)

6. Calculate molar ratio of SPDP to Proteinusing the following equation:



Where the value 8080 reflects theextinction coefficient for pyridine-2-thione at 343 nm: 8.08 x 103 M-1 cm-1





产品名称:SPDP

英文名称:N-Succinimidyl3-(2-Pyridyldithio)propionate

中文名称:3-(2-吡啶基二硫基)丙酸N-羟基琥珀酰亚胺酯

CAS#: 68181-17-9

简介:SPDP crosslinker is a cleavable, waterinsoluble, amino and thiol (sulfhydryl) reactive heterobi-functional proteincrosslinker. The SPDP crosslinking reagent's reactive moites consist of anN-hydroxysuccinimide (NHS) ester that reacts with primary amines. On the otherend of SPDP, the pyridinyldisulfide reacts with sulhydryls to yield areversible disulfide bond.

SPDP交联剂是可分解的,不溶于水,氨和硫醇(巯基)反应heterobi功能蛋白交联剂。SPDP交联试剂的反应的moitesN-羟基琥珀酰亚胺(NHS)酯与伯胺反应。在另一端的pyridinyldisulfideSPDP,反应sulhydryls产生可逆的二硫键。

Application

3-(2-Pyridyldithio)propionic acidN-hydroxysuccinimide ester (SPDP) is useful for the preparation of enzymeimmunoconjugates and hapten carrier molecule conjugates.

It has been used for antibody conjugation andas a protein cross-linker.



General description

3-(2-Pyridyldithio)propionic acidN-hydroxysuccinimide ester (SPDP) is a heterobifunctional cross-linking reagentwith amine and sulfhydryl reactivity. It is typically coupled initially tomolecules containing primary amines by amide bonds buffered at pH 7.5(6.5-8.5). Second coupling specific for molecules containing free sulfhydryl bythiol-disulfide exchange buffered at pH 8.0 (7.5-8.5). Alternately, this reagentmay be used as a protected thiolating reagent following initial coupling andreduction of linker. It incorporates four atom linker.



外观:白色粉末

MolecularWeight: 312.4

分子式:C12H12N2O4S2

CAS#: 68181-17-9

溶解:DMSO or DMF

SpacerLength: 6.8 Å

Alternative Name:3-(2-Pyridyldithio)propionic acid N-hydroxysuccinimide ester

纯度:98%+

保存:-20

厂家:西安瑞禧生物科技有限公司



产品名称:Sulfo-LC-SPDP

英文名称:(sulfosuccinimidyl6-[3-(2-pyridyldithio)propionamido]hexanoate)

简介:Sulfo-LC-SPDP crosslinking reagent isa cleavable, water soluble, amino and thiol (sulfhydryl) reactiveheterobifunctional protein crosslinker.

Sulfo-LC-SPDP crosslinker's reactive moitesconsist of an N-hydroxysulfosuccinimide (Sulfo-NHS) ester that reacts withprimary amines. The other end of the Sulfo-LC-SPDP crosslinking moleculepyridinyldisulfide reacts with sulhydryls to yield a reversible disulfide bond.

LC SPDP交联试剂磺可裂解、水溶性氨基和巯基反应异型双功能交联剂(巯基)蛋白。

SPDP交联剂的反应moitesLC组成的N-羟基(磺基NHS)酯与伯胺反应。的LCSPDP交联分子pyridinyldisulfide磺化反应sulhydryls产生可逆的二硫键的另一端。

Caution

This product is sensitive to moisture. Thevial is packaged in a resealable bag with a desiccant to reduce exposure tomoisture. After cold storage, equilibrate the vial to room temperature beforeopening to reduce condensation inside the vial. Make fresh solutions. Storageof stock solutions is not recommended. After use, return the vial to theresealable bag. Close the bag and store the product at the recommendedtemperature.

General description

The SPDP reagents are a unique group ofamine- and sulfhydryl-reactive heterobifunctional crosslinkers. Whether theyare used to form amine-to-amine or amine-to-sulfhydryl crosslinks amongmolecules, the SPDP reagents produce disulfide-containing linkages that can becleaved later with reducing agents such as dithiothreitol (DTT).



外观:白色粉末

MolecularWeight: 527.6

分子式:C14H16N3NaO8S3

溶解:水中

SpacerLength: 15.7 Å

Alternative Name:Sulfosuccinimidyl-6-(3’-[2-pyridyldithio]-propionamido) hexanoate

纯度:98%+

保存:-20

厂家:西安瑞禧生物科技有限公司
